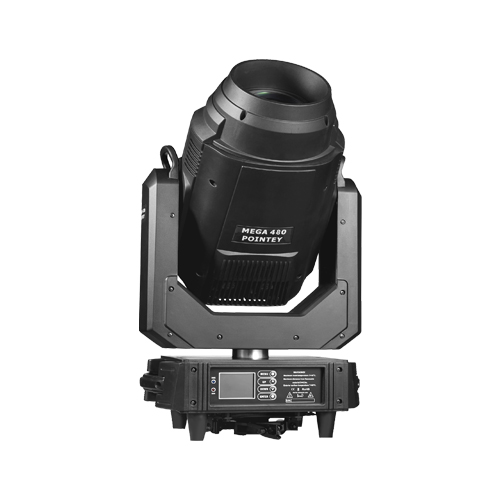

SH-480W lamp beam spot wash moving head lightsElectrical parameters:

Voltage: 100V~240V AC, 50/60Hz

Power: 580W @ 220V

Light source specification:

Light source:Philips 480W bulb

Color temperature:8000K

Life time:2000H

colour:

1 color wheel: 13 colors + white

2.With C M Y function, color can be adjusted;

Can be mixed to make the color richer.

Gobo wheel:

1. 1 rotating gobo wheel: 9 gobos + white

The pattern plate adopts a detachable design, which is more convenient to replace the pattern plate

2. 1 fixed gobo wheel:10 gobos + white+4 beam

Prism:

6pcs prism

Focus:

DMX linear focus adjustment, super smooth focus adjustment.

Strobe/Dimming:

Electronic strobe, 0.3-25 times/second,linear dimming

Frost:

Independent frost lens, softer light

Rotation angle:

Use three-phase stepping motor, fast, quiet, with automatic return function.

Horizontal:540°

vertical: 270°

Beam Angle:

2-35°

Control mode:

DMX512 signal

39/34CH channel mode

Other functions:

Horizontal and vertical speed adjustable

Use powerful silent fan, LED temperature display, reduce power due to overheating, and ensure LED lifetime

Modular structure for easy maintenance

Protection level:

Protection grade: IP20

weight:

Net weight: 24.25kg

Gross weight: 29.5kg

packing size: (mm)

500(L)*345(W)*835(H)

Working temperature:

Maximum ambient temperature 50°C
